BOYA BY-M1 LAVALIER MICROPHONE
0
Shipping is calculated at checkout
Description
The BOYA BY-M1 is a universal, wired omnidirectional lavalier condenser microphone designed for budget-conscious creators, vloggers, and professionals.
Technical Specifications
Microphone Type: Electret Condenser
Polar Pattern: Omnidirectional (360-degree audio pickup)
Frequency Response: 65 Hz – 18 kHz
Sensitivity: -30 dB ± 3 dB (0 dB = 1V/Pa @ 1 kHz)
Signal-to-Noise Ratio: 74 dB SPL
Output Impedance: 1,000 Ω or less
Connector: 3.5 mm (1/8”) 4-pole TRRS gold plug
Cable Length: 6.0 meters (20 feet)
Weight: Microphone: 2.5g; Power Module: 18g
Power & Mode Selection

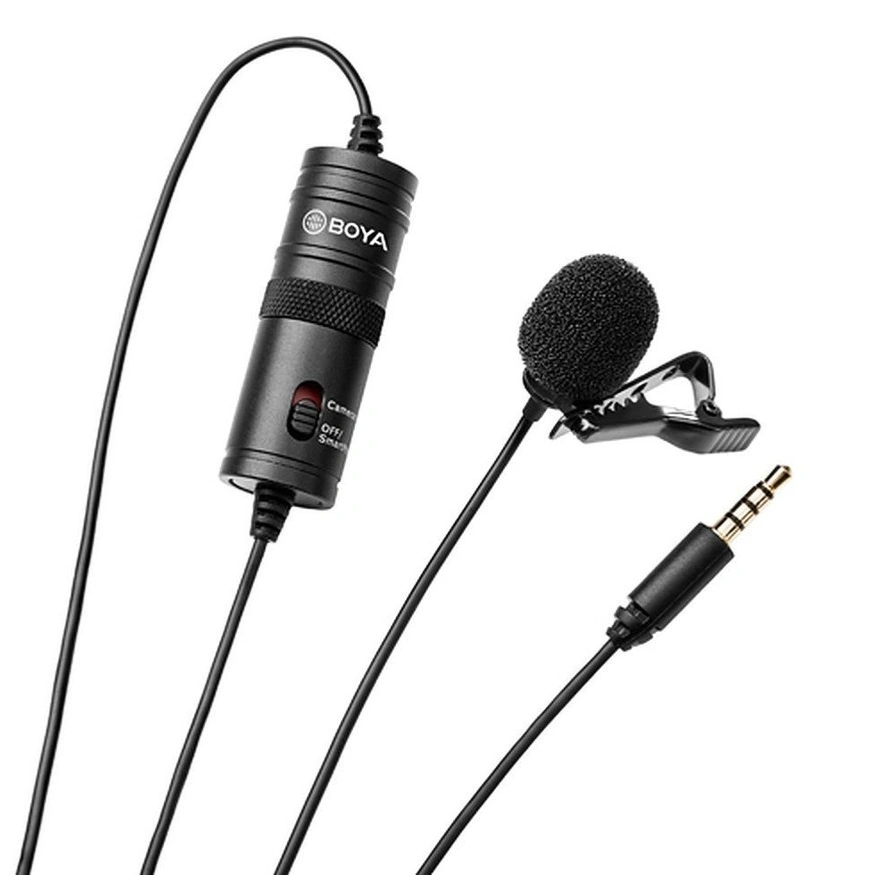

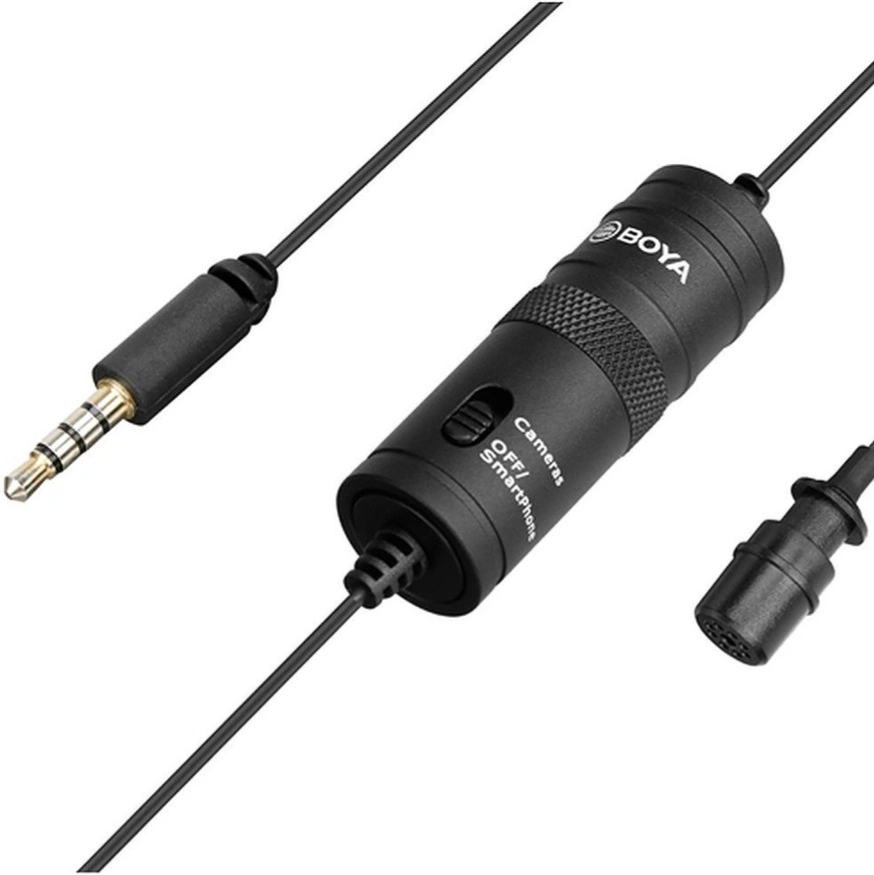

The microphone features an integrated power module inline with the cable to switch between two modes:

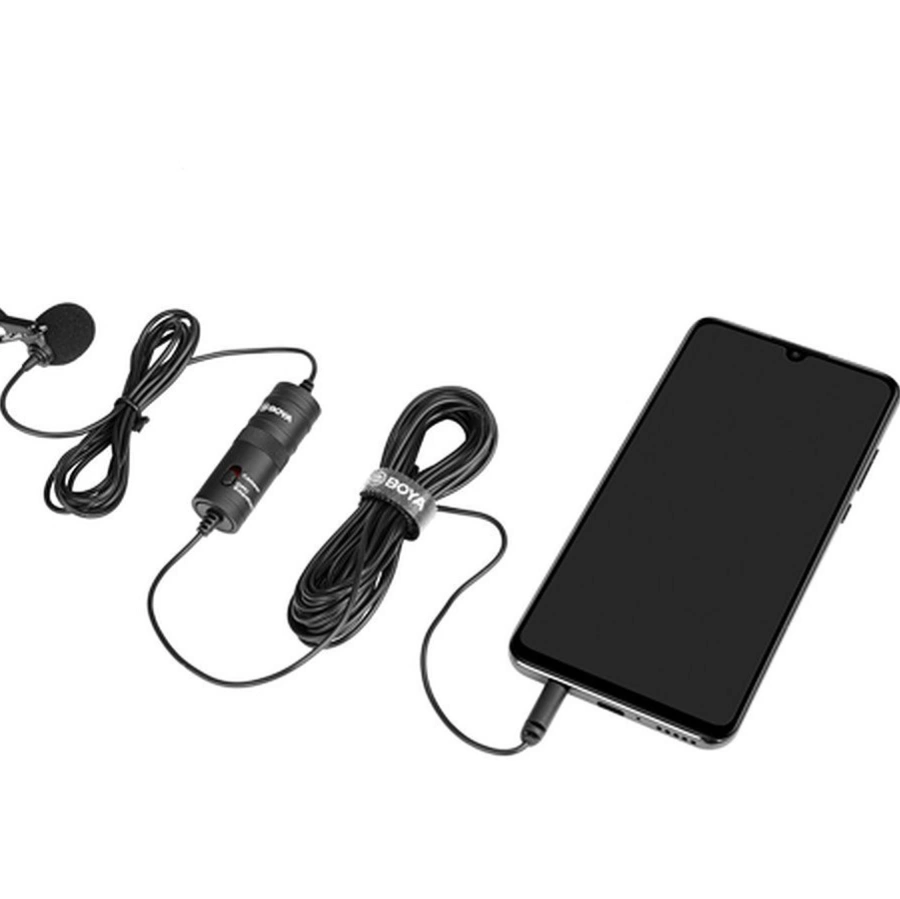

Smartphone Mode: Slide the switch to "OFF/Smartphone". It draws passive power directly from your phone or laptop; no battery is required.
Camera Mode: Slide the switch to "Camera". This activates power from the internal LR44 button battery (included), which is required to feed audio to DSLR cameras, camcorders, and audio recorders.
Package Contents
1 x BOYA BY-M1 Lavalier Microphone
1 x Foam Windscreen
1 x Lapel / Clothing Clip
1 x LR44 Button Battery
1 x 1/4” (6.3 mm) Audio Adapter
1 x Carrying Pouch
